Leading Composite Hose Manufacturer & Distributor in China
Fuel And Oil Hose
Name:Fuel And Oil Hose

Applicable standards

BS EN13765

CCS Type Examination



Size:

1” to 4” Light Duty

1” to 12” StandardDuty

1” to 12” Heavy Duty



Maximum Working up to14 BAR



Safety Factory: 1:4(Burst to Working Pressure)



TemperatureRange:  -30 to +80

Vacuum Rating: 0.9BAR




Consultation
Product Details

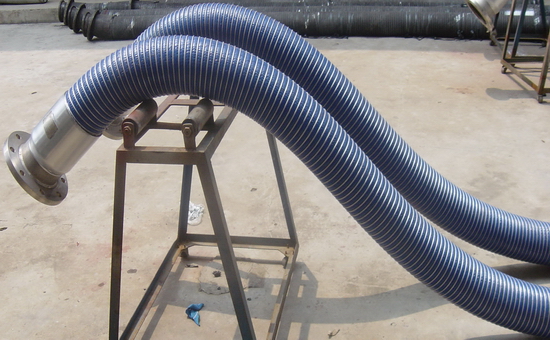

The Sondaflex hosesare composite hoses manufactured to the highest quality. The constructions aredesigned for suitability for the whole range of mineral and fuels. Hoses areavailable from low pressure road tanker applications through to heavy duty shipto shore hoses. All hoses are suitable for suction and delivery. All Sondaflexhoses are manufactured from multiple layers of thermoplastic fabrics and filmssupported by metallic wire inner and outer helices.

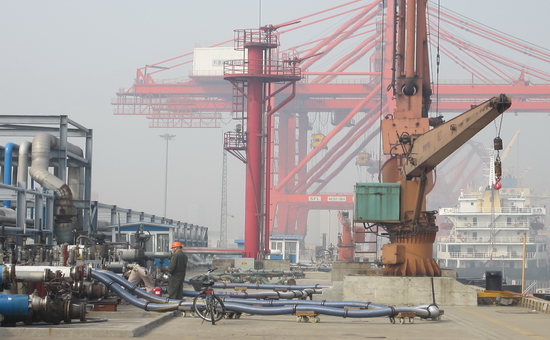

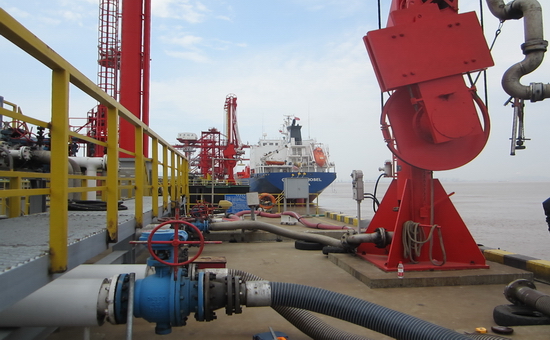

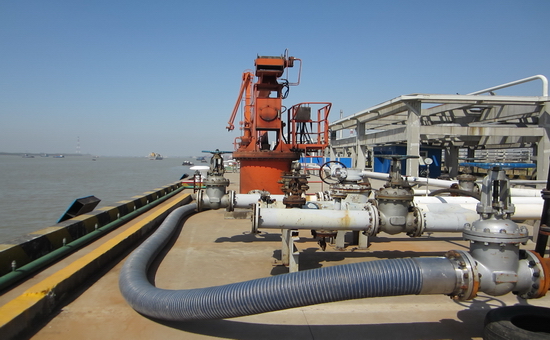

A tough, high strengthoil and petroleum transfer hose. Light Duty is designed for applications suchas rail car loading and unloading, road tanker bottom loading, lubricating oilplant hose exchanges. Standrad Duty and Heavy Duty is designed for ship toshore and on board marine transfer. Galvanised wires are high tensile steelwith a heavy hot dip zinc coating to reduce corrosion. The hose is lined andreinforced with polypropylene fabrics and sealed with polypropylene films. Thecover is a wear and weatherproof layer of PVC coated polyester.



SONDAFLEX  TYGG, TYGS,

Construction

inner Wire spiral: galvanized steel

outer Wire spiral: galvanized steel /stainless steel 304/stainlesssteel 316

inner lining: polypropylene (e)

cover: PVC  (pp onrequest)




Bore Diameter

Max Working Pressure

Bend Radius

Weight

Max Length

INS

MM

BARS

PSI

MM

KGS/M

MT

1

25

14bar

200PSI

200

1.35

30

1.5

40

14bar

200PSI

200

1.80

25

2

50

14bar

200PSI

225

2.45

30

2.5

65

14bar

200PSI

225

3.20

25

3

80

14bar

200PSI

350

4.20

30

4

100

14bar

200PSI

400

4.90

30

6

150

14bar

200PSI

575

12.90

28

8

200

14bar

200PSI

800

20.10

28

10

250

14bar

200PSI

1000

26.50

16

12

300

14bar

200PSI

1200

31.80

16
